Apple iPod Shuffle Alias Model

Accurate modelling with G3 continuity

Description

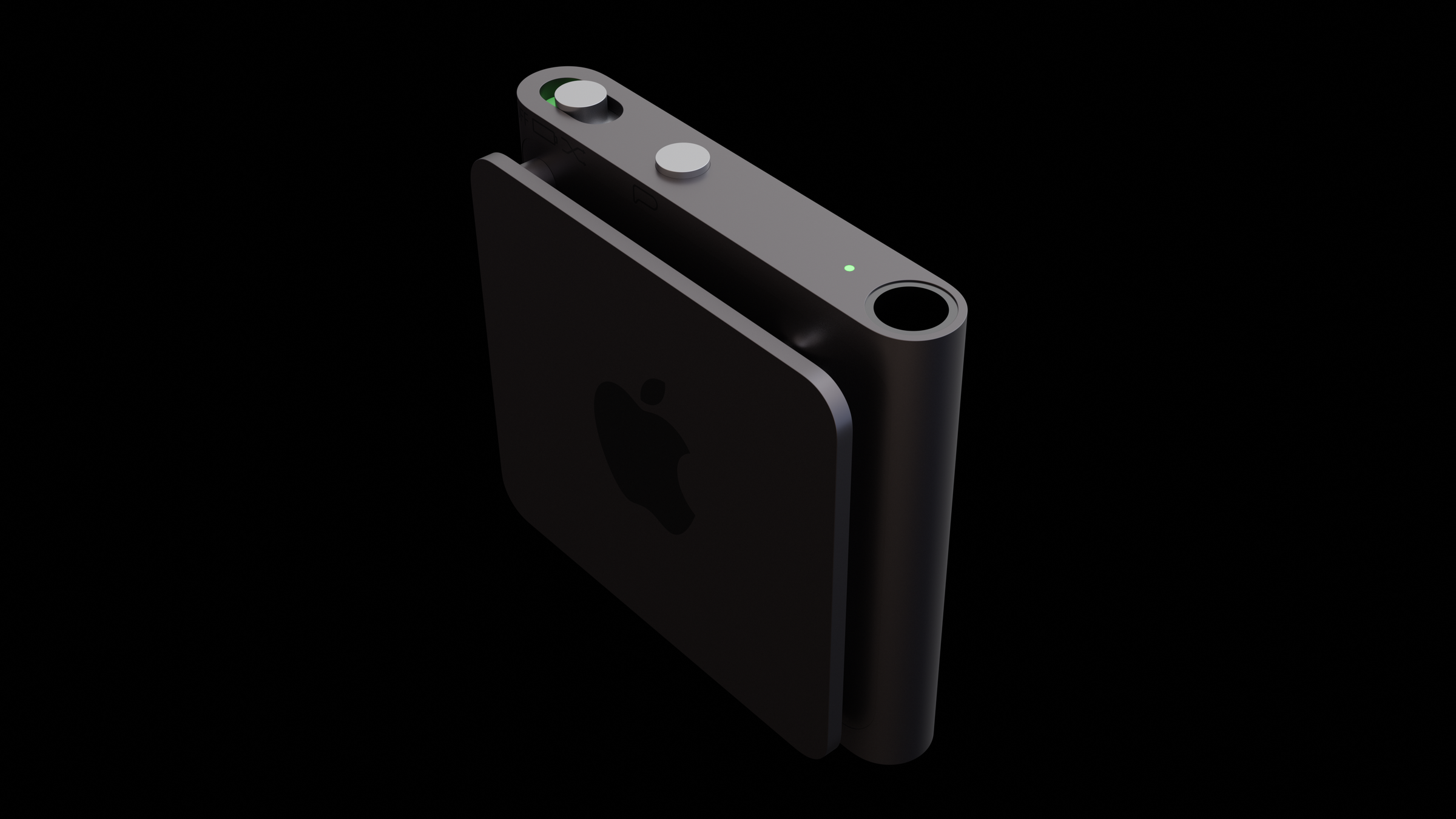

I purchased an iPod Shuffle on eBay, studied it and after using reference technical drawings along with my own measurements, I modeled this fourth generation iPod Shuffle in Alias while ensuring G3 continuity in even the smallest of fillets.

client

Shinji Pons

Type

Alias Modelling

Year

2021

Problem

Process

A focus on clean geometry and flawless reflections.

The geometry looks simple but attention needs to be paid to the large blends. Softening the radius allowed space for a better transition from the flat area. The graphics are trimmed surfaces to be positioned perfectly.

Outcome

A completely curvature continuous and water-tight model.

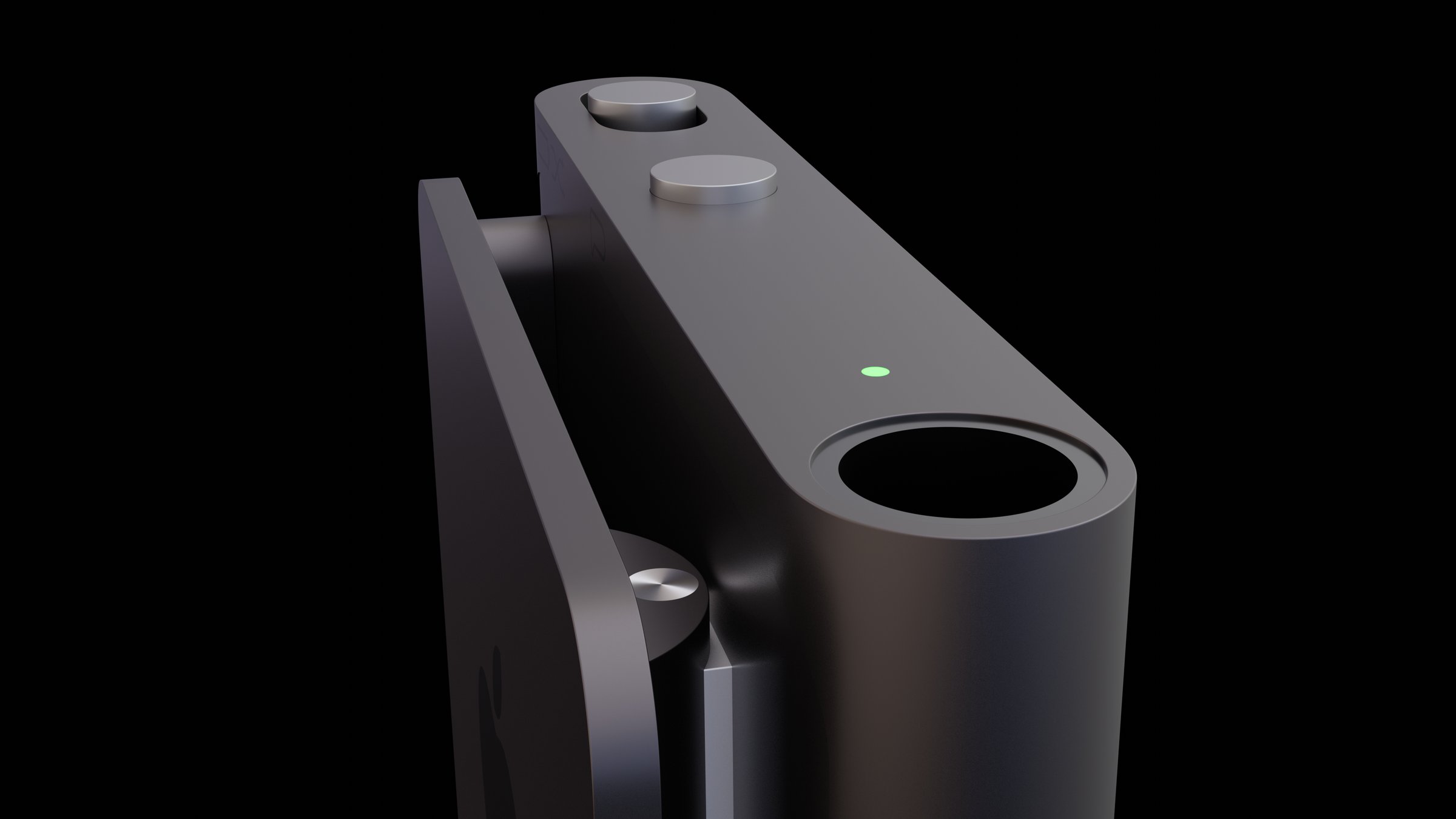

The finished file has a power button and an accurately modelled 1/8" female audio jack. All the surface transitions are G3, even the ones that don't need to be, such as the 90° intersections on the frame and the rear-clip.

contributors

special thanks

Mark Costa (for the radius reduction tip)

Étienne Bérubé

tools used

Autodesk Alias

Blender Cycles
